Number of Voltage Input Channels: 32
Maximum Sample Rate: 50 MS/s
Analog Input Resolution: 12 bits
Analog Input Coupling: AC
Analog Input Bandwidth: 14 MHz
Analog Input Voltage Range: -1 V to 1 V
Compatible FPGA: Virtex-5 Kintex-7

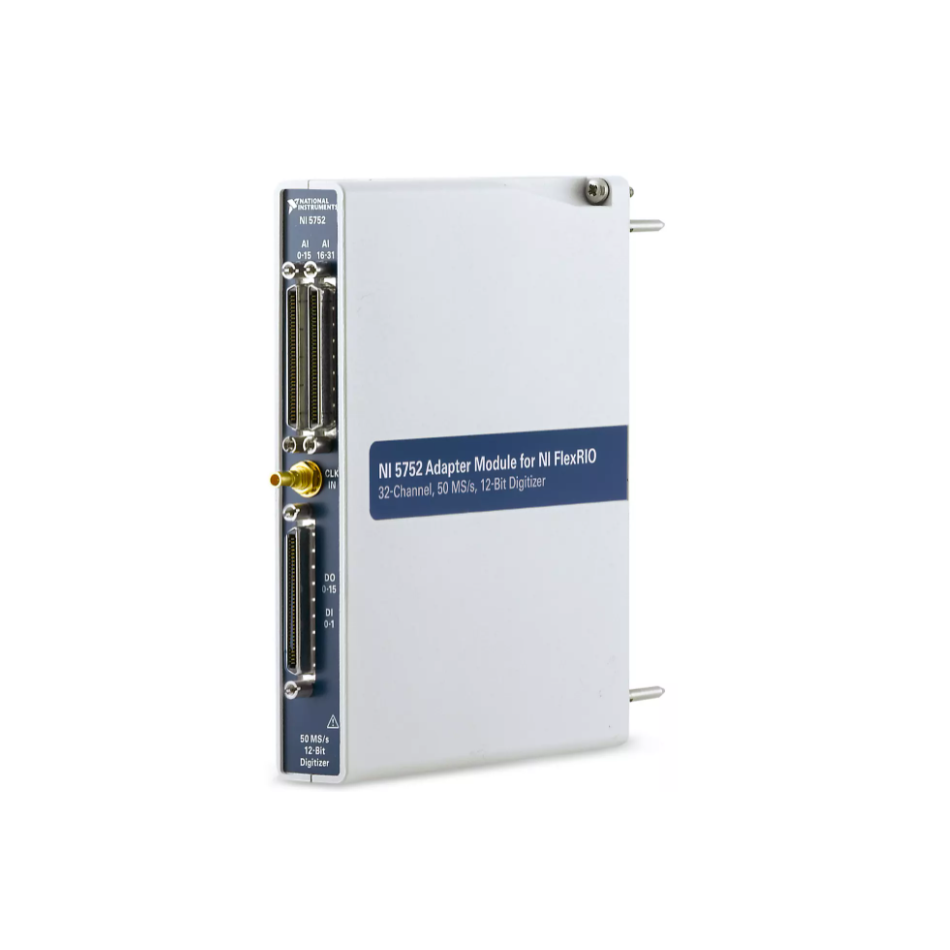

Provides high‐speed analog I/O to digitize signals from your transducer with a PXI FPGA Module for FlexRIO or the Controller for FlexRIO.
Digitizer Adapter Modules for FlexRIO can be used with a PXI FPGA Module for FlexRIO or the Controller for FlexRIO to create a high‐performance instrument with customizable firmware. With sampling rates from 40 MS/s to 3 GS/s and up to 32 channels, these modules cover a wide range of requirements for both time- and frequency‐domain applications. Digitizer adapter modules also provide digital I/O capability for interfacing with external hardware.
