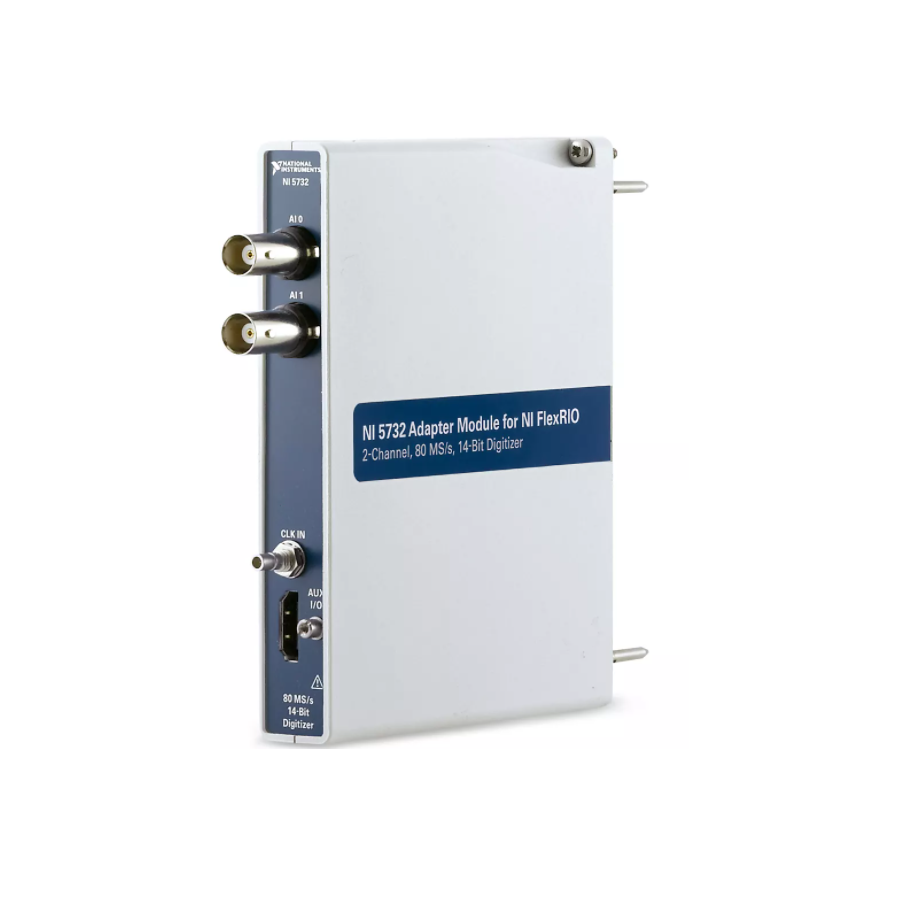

NI NI-5732 Digitizer Adapter Module for FlexRIO (2 Channel, 80 MS/s, AC/DC, Virtex-5 Kintex-7)

Number of Voltage Input Channels: 2

Maximum Sample Rate: 80 MS/s

Analog Input Resolution: 14 bits

Analog Input Coupling: AC/DC

Analog Input Bandwidth: 110 MHz

Analog Input Voltage Range: 0 Vpp to 2 Vpp

Compatible FPGA: Virtex-5 Kintex-7


Details

Provides high‐speed analog I/O to digitize signals from your transducer with a PXI FPGA Module for FlexRIO or the Controller for FlexRIO.

Digitizer Adapter Modules for FlexRIO can be used with a PXI FPGA Module for FlexRIO or the Controller for FlexRIO to create a high‐performance instrument with customizable firmware. With sampling rates from 40 MS/s to 3 GS/s and up to 32 channels, these modules cover a wide range of requirements for both time- and frequency‐domain applications. Digitizer adapter modules also provide digital I/O capability for interfacing with external hardware.

Datasheet
