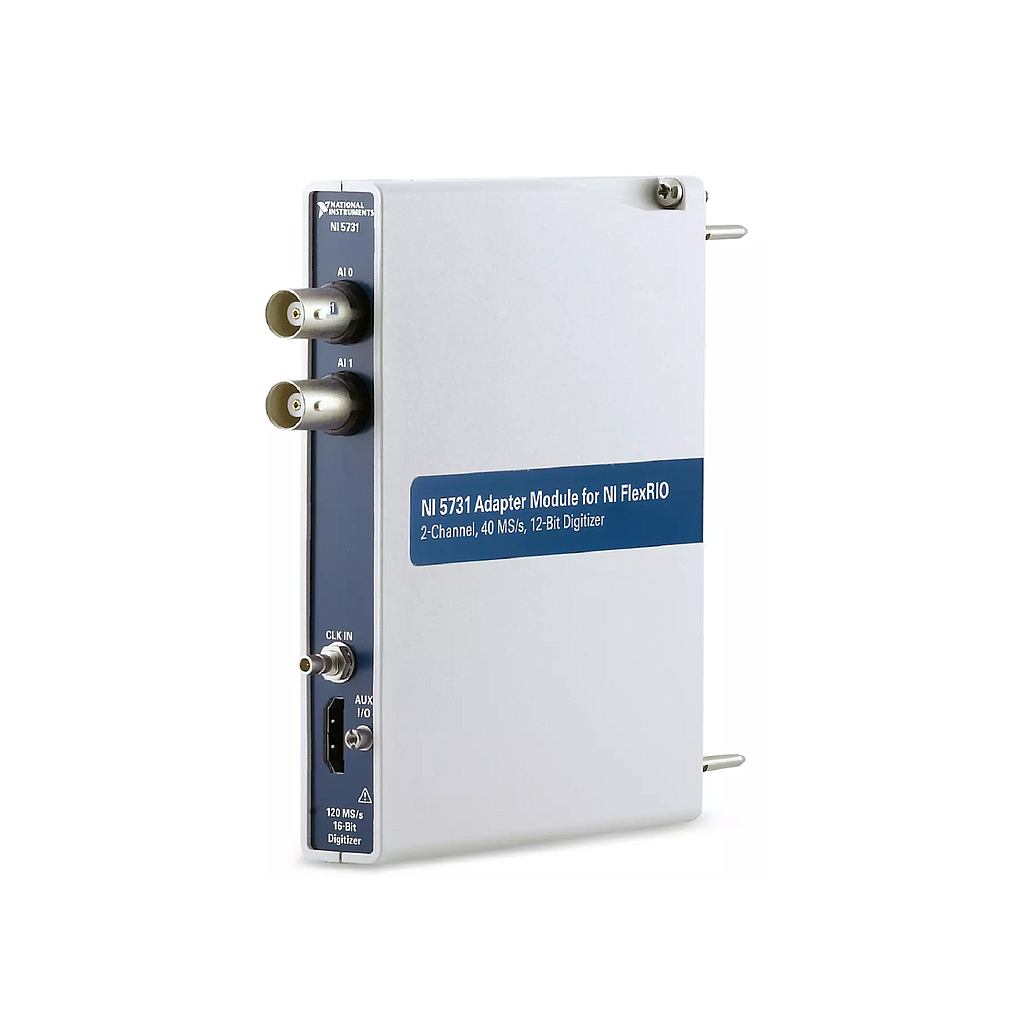

NI NI-5731 Digitizer Adapter Module for FlexRIO (2 Channel, 40 MS/s, AC/DC, Virtex-5)

Number of Voltage Input Channels: 2

Maximum Sample Rate: 40 MS/s

Analog Input Resolution: 12 bits

Analog Input Coupling: AC/DC

Analog Input Bandwidth: 120 MHz

Analog Input Voltage Range: -1 V to 1 V

Compatible FPGA: Virtex-5


Details

Provides high‐speed analog I/O to digitize signals from your transducer with a PXI FPGA Module for FlexRIO or the Controller for FlexRIO.

Digitizer Adapter Modules for FlexRIO can be used with a PXI FPGA Module for FlexRIO or the Controller for FlexRIO to create a high‐performance instrument with customizable firmware. With sampling rates from 40 MS/s to 3 GS/s and up to 32 channels, these modules cover a wide range of requirements for both time- and frequency‐domain applications. Digitizer adapter modules also provide digital I/O capability for interfacing with external hardware.

Datasheet
