Opening Size & Dimension Requirement: 50 x 50mm
Initial Test Force: 3 kgf
Total Test Force: 15 kgf, 30 kgf, 45 kgf
1.588 mm carbide alloy ball
Testing Resolution: 0.5HR
Accuracy: Complying with ISO 6508, ASTM E18
Test Range: HRA, HRB, HRC…HRV etc, 15 scales.
Weight/ Weight/ Gross Weight: 1.2 kg/3.6 kg
Application Range: All metals including iron, steel copper, aluminium, zinc, lead, tin, carburized steel, nitrided steel etc.
Instrument Main Body
120° Diamond Indenter
Warranty Card / Qualified Certificate
Superficial Rockwell Hardness Block
1.588 mm Carbide Alloy Ball Indenter
Tests thin shaft ＞φ2 mm with V anvil.
Tests small ball ＞φ2.5 mm with ball testing anvil.
Tests small and irregular stampings with small supporting surface using slim raised spot anvil.
Tests tin plate and cold-rolled sheet using PHR-1S and diamond raised spot anvil.
Tests thin-wall slim pipes＞φ4.8 mm using PHR-1ST
Test the superficial hardness of metals.
The test principle and accuracy comply to standard ISO6508.

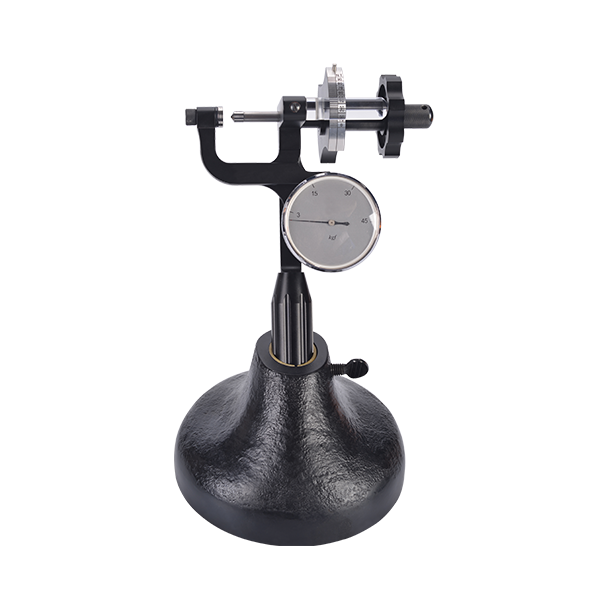

With the bench stand it can be used on the desk as well as on site.
Tests the hardness of thin plates, slim tubes, thin shafts, small balls and small stampings, workpieces with small supporting surface as well as parts requiring small indentation, replacing Vickers hardness tester.
It is used for finished workpiece non-destructive hardness test directly. The small indentation is acceptable to most workpieces.
Traceable standard hardness block.
Indenter inspected with standard Rockwell hardness tester.
Test force calibrated with load cells directly traceable to national secondary benchmark.
