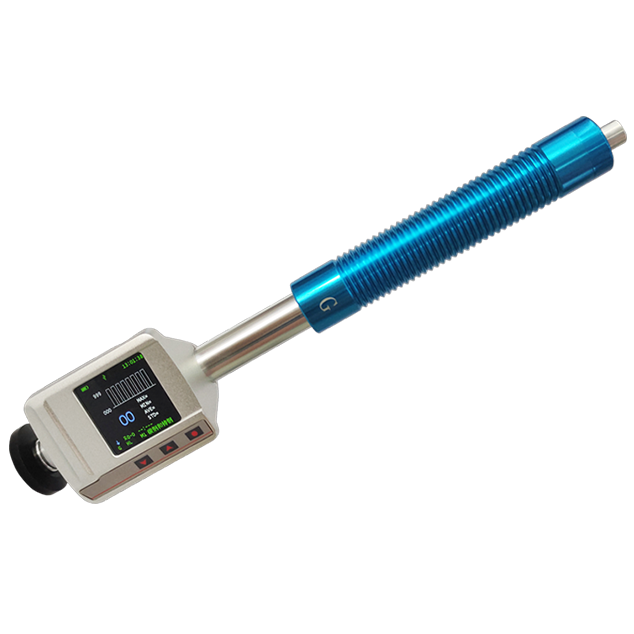

Hoyamo MH-500G ポケットG型リーブ硬さ試験機

Principle: Leeb hardness measurement

Accuracy / Repeatability: ±0.3% at HL=800 / ±4HL

Display: High contrast color TFT 320 x 320

Hardness Scale: HLD/HRC/HRB/HB/HV/HSD/HRA/σb

Measuring Range: HL100~960 / HRC0.6~78 / HRB3~140 / HB24~1140 / HV24~1360 HS3~120 / HRA1~88 /σb (rm)24~3800N/mm²

Probe: G

Memory: 30 files, 100 data for each file, can be saved and re-readable

Re-calibration: Coincident /Independent

Indicator: Low battery

Language: English, Chinese

Interface: USB/Bluetooth to PC for transferring data, wireless printing, USB for charging

Power on/off: Auto/Manual

Power supply: 3.7V Li-ion rechargeable battery

Working environment: -20°c~+70°c

Dimension (mm): 253x47x34(mm)

Net weight (g): 275

Standards: Conforming to ASTM A956, DIN 50156, GB/T 17394-1998

Standard Delivery:

  • Main unit 1

  • Internal probe E 1

  • Test block D 1

  • Small support ring 1

  • Cleaning brush 1

  • 3.7 V Li-ion rechargeable battery (internal) 1

  • Bluetooth module (internal) 1

  • Charger 1

  • USB cable 1

  • Data managing software 1

  • Operation manual 1

  • Test Certificate 1

  • Carrying case 1

Optional Accessory:

  • Bluetooth micro printer (powered by rechargeable battery)

  • Special support rings

  • Standard support ring for probe D

  • Small support ring

  • Impact body E

  • Test block D with certificate

  • Test block D w/o certificate

  • European adapter plug
