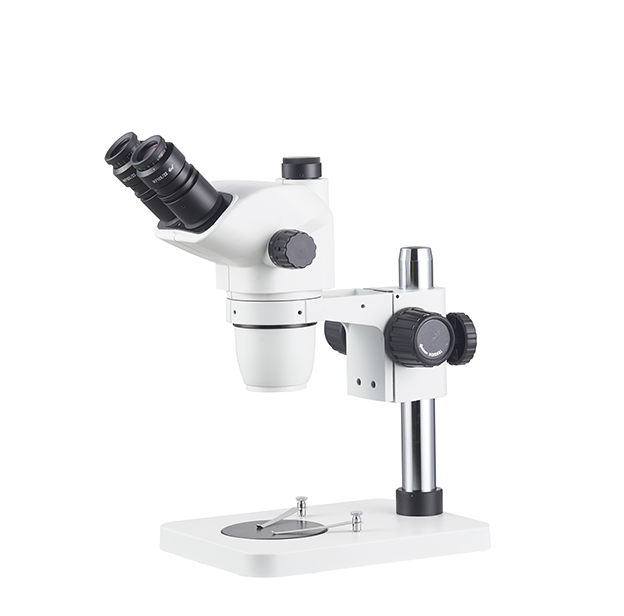

Hoyamo HTX-30T 三眼広視野連続ズーム実体顕微鏡 (6.5X-65X, Trinocular)

Name: Hoyamo HTX-30T 三眼広視野連続ズーム実体顕微鏡 (6.5X-65X, Trinocular)
Brand: Hoyamo
SKU: HoyamoHTX-30T
Availability: OutOfStock

Observation Head: Trinocular head, 45°decline, 360°rotate, Pupil distance 54---76mm; Bilateral visual adjustment ±5°

Eyepiece: Standard WF10X22 High angle wide angle eyepiece, provide convenience for observers who wearing glasses

Optional eyepiece: WF10X22，WF20X12mm

Magnification: Standard 6.5X---65X Optional and auxiliary objective can be extended to 2X---260X, continuous doubling

Objective: 0.65X---6.5X Zoom Range Objective magnification ratio 1：10, ensure image alignment

Auxiliary Objective: 0.3X，0.5X，0.75X，1X，1.5X，2X (Optional)

Working Distance: 110mm

Focusing Bracket: 76mm diameter, 32mm pole size

Stand: TO column type small flat base (Standard) Other base can be selected, see the base series for details

Illumination: Optional LED Illumination, see LED light source series diagram for details

Plate: Black/ White plate

Dimension: 320mm(W)X260mm(D)X274mm(H)

Photographic Eyepiece: 1/2CTV，1/3CTV，0.35XCTV，0.5XCTV，1XCTV

Details

Production Feature：

Unique optic design;

With long working distance and field of depth;

Horizontal zoom knob, easy operation;

Widely used for medical service, agriculture, geology, electronic precision mechanical industry and department.
