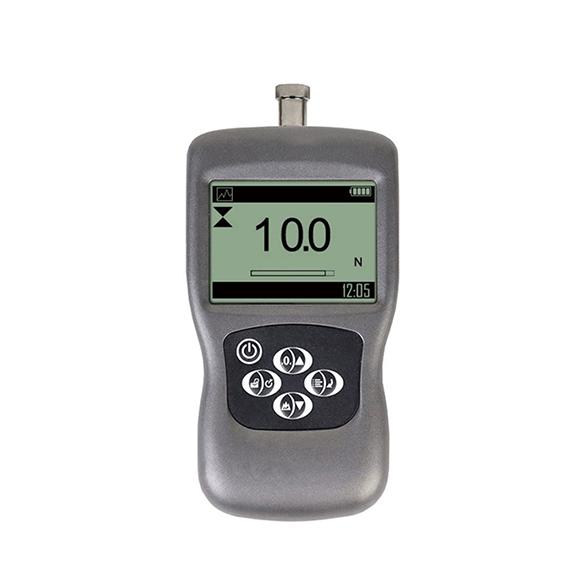

Hoyamo HFG500E フォースゲージ (500/0.1N)

  • 生産者:Hoyamo
    Model: HFG500E
    起源: China
    • 要件クオート Request a Quotation
  • 連絡先
    • カートへ追加
    • 今すぐ注文
  • 전화번호: いい価格のため、連絡しなさい
    ホットライン: (+84) 968060220
    電話番号: +84 (24)62923267

Capacity/Resolution:

N: 500/0.1

kgf: 50/0.01

lbf: 110/0.1

Ozt: 1800/1

gf: -

Accuracy: ± 0.3% F.S.

Selectable Units: N, gf, kgf, ozf and lbf

Display: 160*128 dot matrix LCD(2.8 inch) with LED Backlight

Overload Capacity: 150% of F.S. (LCD blinks beyond 110%)

Measurement Mode: Track, Peak, Preset

Data Sampling Rate: Up to 1KHz

Display Update Rate: 10 times/second

Memory: 500 data

Set Point: Programmable high and low limits

Power: 3.6VDC 400mAH Ni-Mh rechargeable batteries

Battery Life: Approx. 7 hours of continuous use

Charger: Universal USB/BM charger, Input:110~240VAC

Temperature Effects: <0.03% FS per °C

Communication: USB or RS-232

Software: Free software for USB communication

Outputs: RS-232, "Within" set point output, "Under or over" set point output

Operating environment:

Temperature: -10 to 40°C

Relative Humidity: 20 to 80%

Storage environment:

Temperature: ­-20 to +50°C

Relative Humidity: 5 to 90%

Dimensions: 150*72*33mm

Weight: 0.45 kg (1 lb)

Accessories: AC adapter/charger, USB cable, 6 attachments: hook, flat tip, conical tip, chisel tip, notched tip, extension shaft

Options: Mini-printer, Measuring Adapters, EST-FG1M1 Test Stand, EST-FG2V Motorised Test Stand, EST-FG2H Motorised Test Stand, Ergonomics measuring Kit

Details

Feature:

Durable metal case

Reverse display setting

Mechanical overload protection

Calibration certificate Included

Charger with US/EUR/UK Plugs selectable

USB or RS232 communication interface, easy to communicate with PLC

Support low battery alarm

Accuracy: ± 0.3% FS

Sampling Rate: up to 1KHz
