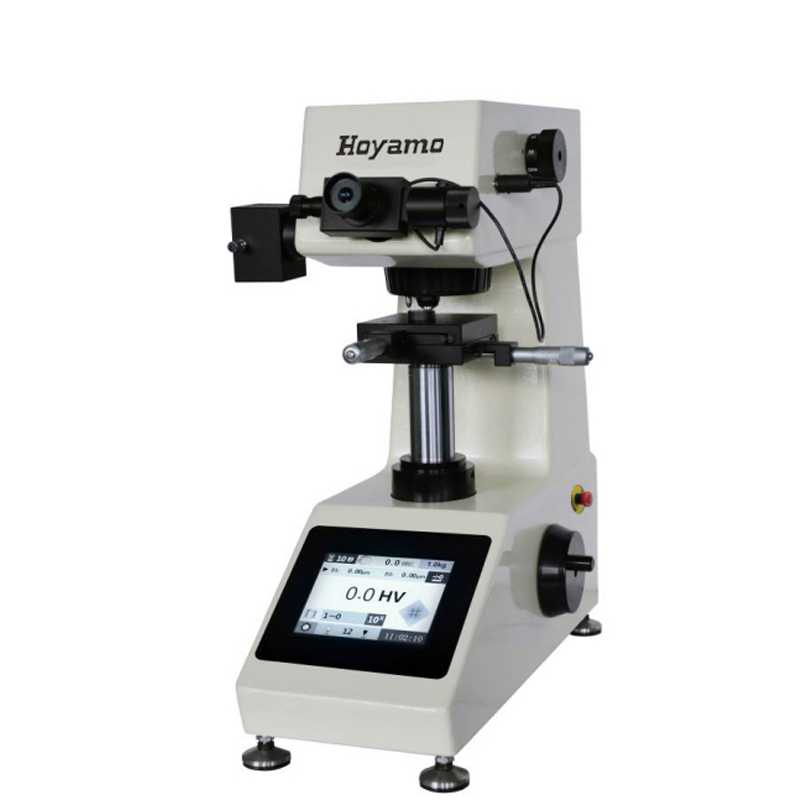

Hoyamo MHV-2000A デジタルマイクロビッカース硬さ試験機 (1HV~3000HV)

Hardness Scale: HV(HK Optional Available)

Hardness Conversion: HV, HR, HRC, HB, HK

Loading Force:

N:0.098, 0.246, 0.49, 0.98, 1.96, 2.94, 4.90, 9.80, 19.6

gf: 10, 25, 50, 100, 200, 300, 500, 1000, 2000

Turret Switch: Auto-Turret for Indenter and Objective

Indentation Measurement: digital Micrometer-Sensor Eyepiece (To measure the indention by optional Vickers Testing Software system)

Loading Control: Automatic (Loading, Dwell, Unloading)

Magnification of Microscope: Observation:10x/40x; Measurement:10x/40x

Magnification on of Eyepiece: 10x Digital Micrometer Eyepiece

Dwell Time: Adjustable 5~60s

Testing Range: 1HV~3000HV

Analogue X-Y Anvil: Size:100x100mm; Travel:25 x25mm; Resolution: 0.25um

Optical Channel: Two-Channel: Eyepiece/camera switchable

Illumination: Adjustable LED Light-source

Max. Height of Specimen: 90mm

Instrument Throat: 120mm

Operating Temperature: 23±5℃; <65%

Power Supply: AC220V/50Hz; AC110V/60Hz

Dimension (LxWxH): 530×290×490mm

Gross/Net Weight: 50Kg/40Kg

Details

Application Range:

The micro hardness testing of materials allows for the determination of the hardness of small or thin specimens and small areas of larger specimens, Micro hardness testing is commonly used to determine characteristics of thin sheets, foils, fine wire, epoxies, paints, etc. and is often employed in R&D applications.

Micro hardness is especially useful in determining hardness variations, caused by hardening, quenching, plating, fabrication, welding or annealing, bonding, etc. Micro hardness testing can be accurately employed using loads as slight as 10 grams, somewhat less and considerably more in certain situation.

Optional Vickers hardness testing software is available for CDH (Carburized layer depth) measurement.
