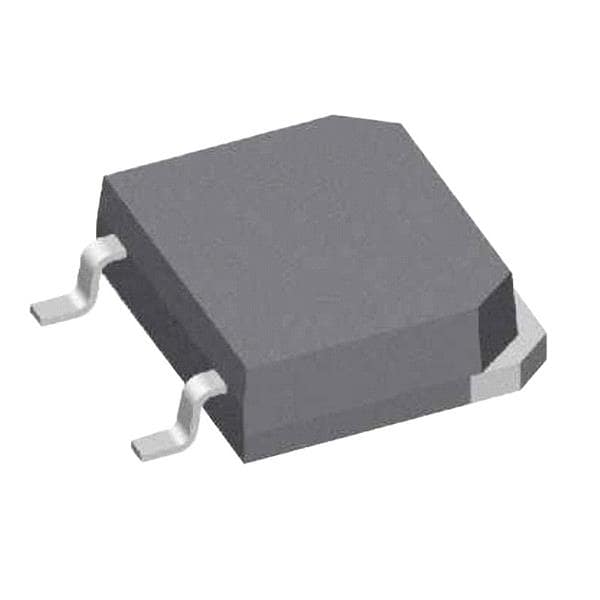

Linear L2 Power MOSFET 40 Amps 500V IXYS IXTT40N50L2
Hãng sản xuất: IXYS Model: IXTT40N50L2 - Liên hệ
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222)730.39.68
TP. HCM: (028) 38.119.636
Width: 16.05 mm
Height: 5.1 mm
Length: 14 mm
Fall Time: 44 ns
Rise Time: 133 ns
Technology: Si
Unit Weight: 6.500 g
Channel Mode: Enhancement
REACH - SVHC: Details
Configuration: Single
Mounting Style: SMD/SMT
Qg - Gate Charge: 320 nC
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Pd - Power Dissipation: 540 W
Vgs - Gate-Source Voltage: - 20 V, + 20 V
Typical Turn-On Delay Time: 50 ns
Typical Turn-Off Delay Time: 127 ns
Id - Continuous Drain Current: 40 A
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 55 C
Forward Transconductance - Min: 11 S
Rds On - Drain-Source Resistance: 170 mOhms
Vds - Drain-Source Breakdown Voltage: 500 V
Vgs th - Gate-Source Threshold Voltage: 4.5 V
