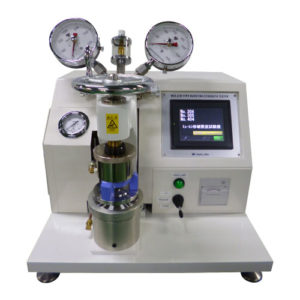

Yasuda 304-TP Mullen High-Pressure Type Bursting Strength Tester

Specimen: 100 × 100 mm

Clamp:

+ Upper φ31.5 ± 0.1 mm

+ Lower: φ31.5 ± 0.1 mm

+ Upper and Lower both with 60°V Groove

Pressing Speed: 170 ± 15 ml/min

Pressure Gauge: Choose 2 kinds (2.0, 4.5, 7.0 MPa)

Accessories: Rubber Membrane: 10 pcs, Membrane Gauge, Fixing Tool

Option: Digital Pressure Gauge, Pneumatic Clamp Spec (YPO)

Power Source: AC 100 V, 1-Phase, 10 A, 50/60 Hz

Dimensions/ Weight (Approx.):

+ W400 × D400 × H850 mm/ 80 kg

+ W400 × D500 × H560 mm/ 85 kg (YPO)
