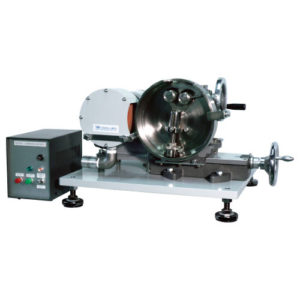

Yasuda 255 Compound Grinder


Specimen: W Max. 40 mm, L Max. 520 mm

Drum: Outer Diameter φ220 mm, W 2″

Abrasion Wheel: φ125 mm, T 2″, Material A, Grit #36

Wheel Rotation Speed: 2,500 to 3,500 rpm

Dial Gauge: Scale 1/100 mm, Stroke Max. 10 mm

Power Source: AC 100 V, 1-Phase, 5 A, 50/60 Hz

Dimensions/ Weight (Approx.)

+ Tester Body: W650 × D500 × H400 mm, 70 kg

+ Control Box: W140 × D250 × H200 mm, 3 kg
