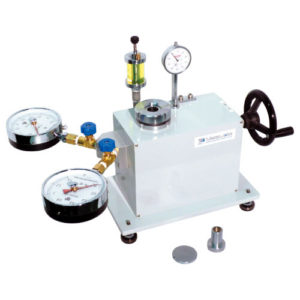

Yasuda 236 Leather Ball-Bursting Tester

Specimen: φ40 mm

Clamp: Inner Diameter φ25 ± 0.1 mm

Steel Ball: φ6 ± 0.025 mm

Push Speed: 12 ± 4 mm/min

Pressure Gauge: Max. 1.4 MPa (Scale 0.01 MPa), Max. 4.5 MPa (Scale 0.05 MPa)

Dial Gauge: Scale 1/100 mm, Stroke Max. 20 mm

Accessories: Jig for Lowering Piston, Standard Plate

Dimensions/ Weight (Approx.): W545 × D340 × H360 mm/ 25 kg
