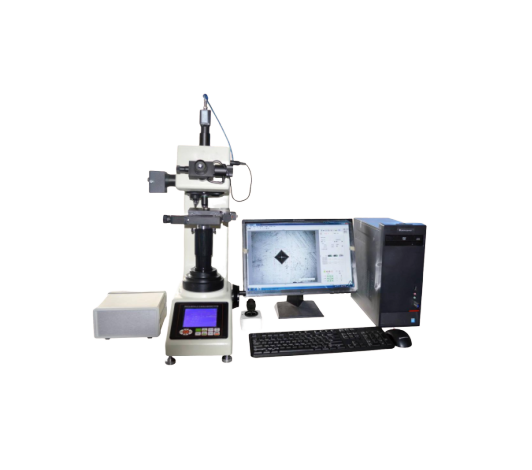

EBP DVS-30XY Advanced Automatic Digital Vickers Hardness Tester (1HV - 2967HV)

Test Force:

  0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf, 20kgf, 30kgf

  4.90N, 9.80N, 19.6N, 24.5N, 29.4N, 49N, 98N, 196N, 294N

Eyepiece: 10X digital eyepiece with built-in encoder

Test Range: 1HV - 2967HV

Loading Method: Automatic (Loading/Dwell/Unloading)

Force & test load control: Close loop, load cell

Turret: Automatic Shifting

Conversion Scale: HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N,

HR15T, HR30T, HR45T, HS, HB

Data Output: Built-in Printer; WORD or EXCEL Report with Curve Chart

Hardness Reading: Indentation Displaying and Automatic Measuring on PC

Light Source: Halogen Lamp

Motorized X-Y Test Table: Size: 110×110mm; Travel: 50×50mm; Resolution: 0.002mm

Test space: Height: 170mm; Depth: 130mm

Execute Standard: ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2
