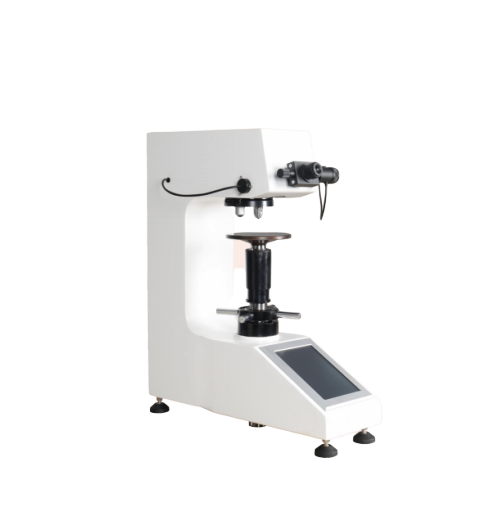

EBP DV-100ALT Close Loop Load Cell type Touch Screen Digital Macro Vickers Hardness Tester (8-2900HV)

Test Force:

5.0Kgf(49.0N), 10.0Kgf(98.0N), 20.0Kgf(196N), 30.0Kgf(294N),

50.0Kgf(490N), 100.0Kgf(980N)

Hardness conversion: HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T

Min measuring unit: 0.01µm

Hardness range: 8-2900HV

Force loading: Automatic loading - dwell - unloading

Turret: Automatic

Magnification: Standard: 100X (measurement), 200X (measurement)

Dwell time: 0-99S (1 second per step)

Data output: Test data display on LCD screen, can save to U-flash in Excel format

Test space: 180*160MM (H*D)

Standard: ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2
