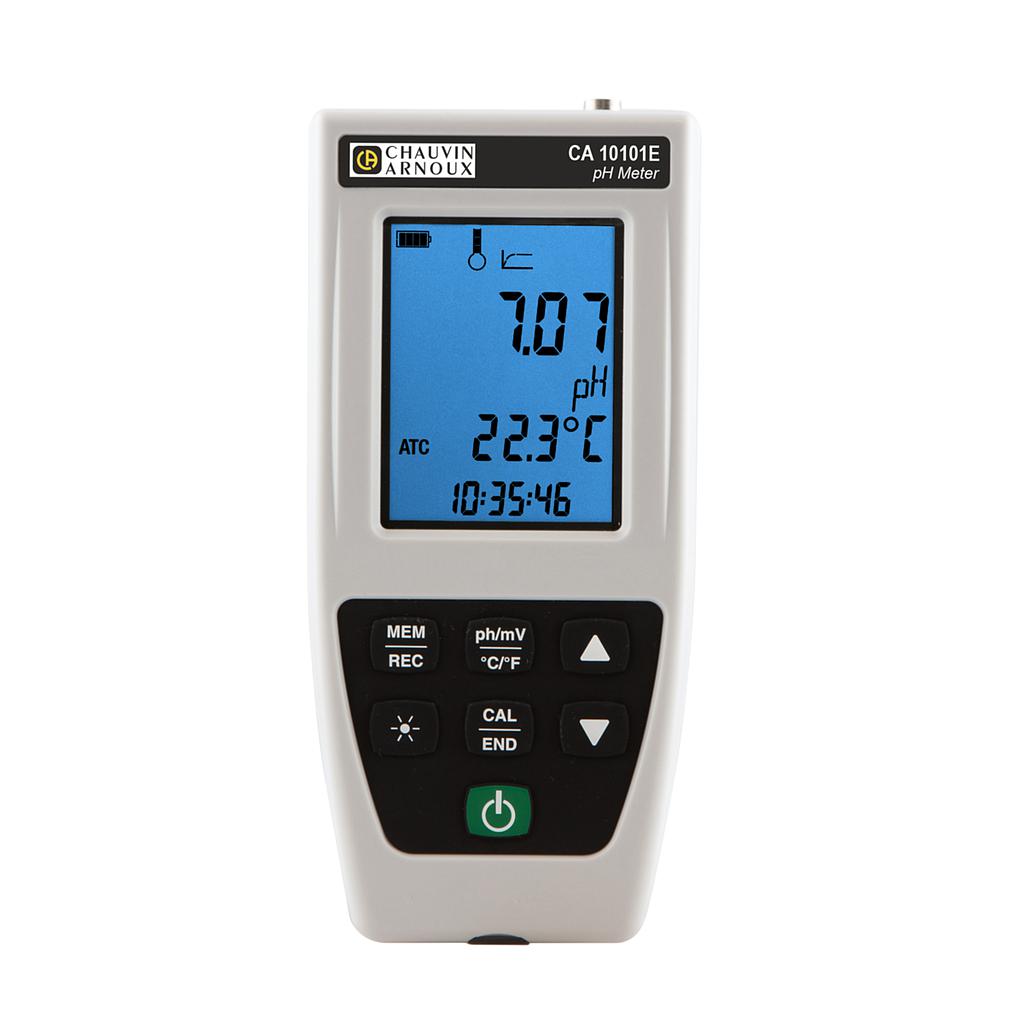

Chauvin Arnoux CA 10101E Laboratory pH Meter (-2.00 - 16.00 pH)

- Measurement range:

pH -2.00 to 16.00 pH;

Redox ±199.9 mV / -1999 to -200 and 200 to 1999 mV;

Temp -10.0 to +120.0°C / 14.0 to 248.0°F

- Resolution (R):

pH 0.01 pH

Redox 0.1mV / 1mV

Temp 0.1 °C / 0.1 °F

- Intrinsic uncertainty (instrument without probe):

pH ±0.02 pH

Redox ±0.2mV / ±2mV

Temp ±0.4 °C / ±0.7 °F

- Calibration

pH: Automatic, up to 3 points, 3 predefined, modifiable reference groups

Redox: Automatic, 1 point, 2 predefined, modifiable reference values

- Electrode

pH NOT SUPPLIED

Redox NOT SUPPLIED

- T°C compensation: Automatic (ATC) or manual (MTC), - 10 to 120°C / 14 to 248 °F

- Data storage: 100,000 measurements

- Batteries / battery life: 4 x 1.5 V AA or LR6 alkaline batteries /~200h use

- Sensor input: BNC (pH and redox electrode) 2 mm banana (reference electrode) Jack (Pt1000 temperature probe)

- Communication interface: Type-B micro-USB (also used for power supply); Analogue output for pH or Redox (2 x 4 mm banana)

- Dimensions (with sheath): 211x127x54 mm

- Weight: 600 g (with batteries)

- Environmental conditions: Storage: -20 to +70°C; Operation: -10 to +55 °C
