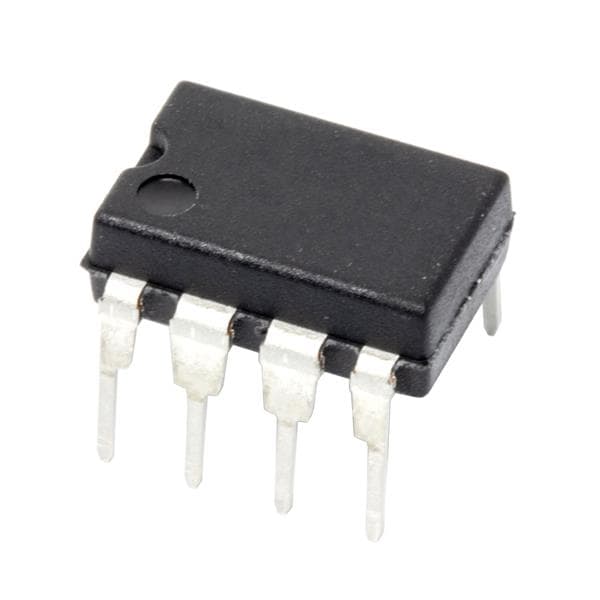

Microphone Preamplifiers ULTRA LOW NOISE OP AMP IC Analog Devices AD797ANZ
Hãng sản xuất: Analog Devices Model: AD797ANZ - Liên hệ
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222)730.39.68
TP. HCM: (028) 38.119.636
Class: Other
Width: 7.11 mm
Height: 5.33 mm
Length: 10.16 mm
Bandwidth: 8 MHz
Supply Type: Dual
Unit Weight: 1 g
Mounting Style: Through Hole
Output Current: 50 mA
SR - Slew Rate: 20 V/us
THD plus Noise: 0.0001 %
Available Set Gain: 20 V/uV
Number of Channels: 1 Channel
Dual Supply Voltage: +/- 9 V, +/- 12 V, +/- 15 V
Supply Voltage - Max: 18 V
Supply Voltage - Min: 5 V
Ib - Input Bias Current: 1.5 uA
Maximum Input Resistance: 100 MOhms
Operating Supply Current: 8.2 mA
Input Voltage Range - Max: 18 V
Vos - Input Offset Voltage: 25 uV
Maximum Dual Supply Voltage: +/- 18 V
Minimum Dual Supply Voltage: +/- 5 V
GBP - Gain Bandwidth Product: 110 MHz
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
CMRR - Common Mode Rejection Ratio: 114 dB
PSRR - Power Supply Rejection Ratio: 130 dB
